Digital Web Label Varnish and Foil Stamping Machine EcooSpark
The EcooSpark digital UV varnish printing machine enables digital synergistic processes including digital varnishing, 3D crystal bright, partial glazing, cold foil stamping, embossing, and braille printing — all without plate making requirements. It is the ideal equipment for digital printing machines such as HP Indigo, Screen L350, KM Accurio, Xeikon, Durst and more.
Applications
Wine Labels, Cosmetic Labels, Luxury labels, Washi tapes, braille printing, toothpaste tube foiling and more.
Innovation and Intelligent Manufacturing
As the label printing market evolves with shorter run lengths, rising media costs, and shrinking margins, EcooGraphix & Winbosc bridges the gap between brand owners and label printers with on-demand printing capabilities.
Utilizing PiezoDOD inkjet print head technology, this press delivers high-quality labels at 600*600 DPI native resolution, speeds up to 70m/min, and print widths up to 330mm. The system offers the lowest total cost of ownership and fastest return on investment in the industry.
The digital press excels in short to medium runs while enabling personalization, variable data, and security printing in real-time production.
Key Machine Configurations
- Full Sets of Mitsubishi servers
- HeFeng Corona Treatment (BST optional)
- Web guide and Monitoring System: E+L
- Full Led-UV curing system
- Printing Software: GIS UK
- Auto Cleaning System
- KM 1024i print head
- Multiple sensors for tension control
Available in 288mm, 330mm and 430mm printing width models. Most of our machines have been in reliable operation for about 5 years with no trouble, demonstrating stable and perfect performance that pleases our customers.
Technical Specifications
| Model |
EcooSpark |
| Printing Technology |
UV Piezo DoD-inkjet |
| Resolution |
Up to 1440*360 dpi |
| Printing Speed |
10m/min - 60m/min (depends on polymer layer thickness) |
| Variable Image System |
PDF, optimized PDF, Optional barcode system |
| Supported Image Standards |
PDF, PDF/VT, TIFF, JPEG, BMP & other database files |
| Substrates |
Offset, Digital, Plastics, Laminated and coated substrates |
| Printing Image Width |
288mm (extendable to 450mm) |
| Polymer |
WB-DS-Clear Polymer |
| Polymer Layer Thickness |
10-180 microns |
| Ink Curing |
Inter UV-LED Pre-curing/Full curing by UV-LED |
| Unwinder Diameter |
Max. 700mm, Core 76mm |
| Rewinder Diameter |
Max. 700mm, Core 76mm |
| Substrates Thickness |
30-400 microns |
| Substrates Width |
330mm |
| Press with Foil Station Dimensions (L*H*W) |
3500mm * 1900mm * 1800mm |
| Operating Environment |
Temperature: 15℃-30℃, Humidity: 40%-80% relative humidity |
| Electrical Requirements |
Voltage: 3*380, ±5% 3 phases +G+N
Frequency: 50/60 Hz
Current: Avg. 25 Amps in Production |
| Weight |
2800kg |

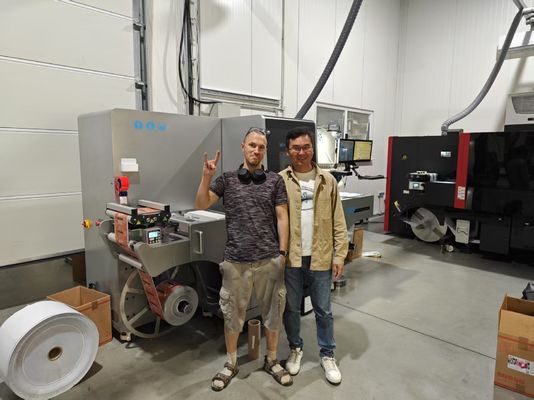

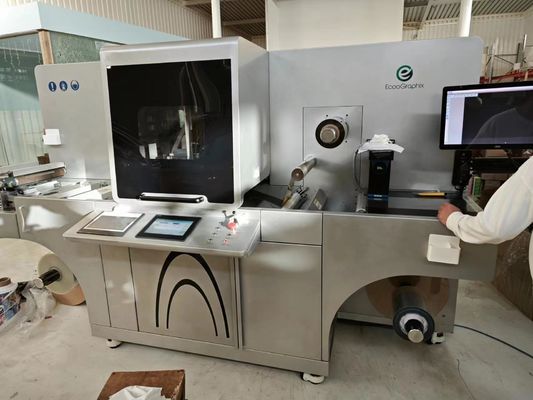

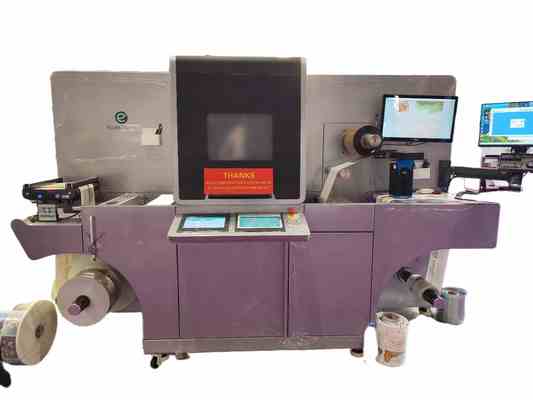

Product Images
